Hammer Mill
As the pellet mill can only process the raw materials with a diameter lower than 5mm, before the pelletizing process takes part in a pellet plant, the raw materials such as straw, bark, branches, corn stalk, need to be resized. In that case, hammermill, which can grind the raw materials into pieces with the required size, is a necessary auxiliary equipment for a pellet plant.
Operation of Hammermill
The working principle of hammermill is simple. Basicly, hammermill is a metal drum, and inside, there is a rotating shaft with many hammers on it, which are fixed to the rotor. The rotor is rotating on a high speed while the raw materials are feeding in the grind chamber. After crashing and grinding by the hammers, the resized raw material will pass through the sieve holes by air flow, the particles which is failed to pass the sieve holes will go through the grinding process again. Here is the pictures of GEMCO hammermill inner structure:
Types of GEMCO Hammermill
Hammermill, also called wood grinder, is aimed to grind the materials into small pieces with a diameter below 5mm before pelleting. Unlike the wood crusher, the diameter of the raw materials for hammermill is no more than 50mm. In consideration of your different requirements of capacity, price and quality, GEMCO provides a various kinds of hammermill to meet your demand, both small hammermill and large hammermill are available.

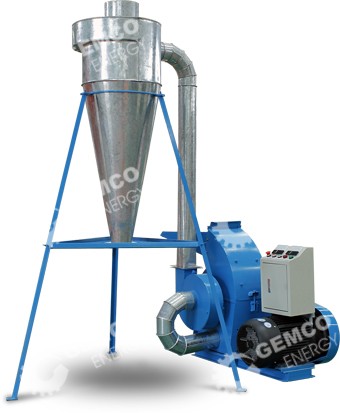

small hammer mill -420 Series
Technical data of small hammer mill
| Model | Power | Size (mm) | Net weight (kg) | Spindle Speed (r/min) | Screen | Capacity (kg/h) |
| 420B-7.5 | 7.5KW (electric motor) |
1200×1000×1220 | 285/310 | 3200 | 1.2-10 | 300-600 |
| 420B-11 | 11KW (electric motor) |
1200×1000×1220 | 310/330 | 3200 | 1.2-10 | 300-600 |
| 420A-15 | 15HP (diesel motor) |
1400×1000×1200 | 340/400 | 3200 | 1.2-10 | 300-600 |
| 420A-22 | 22HP (diesel motor) |
1400×1000×1200 | 370/410 | 3200 | 1.2-10 | 300-600 |
| 500A-55 | 55HP (diesel motor) |
2000×900×1700 | 400/420 | 3200 | 1.2-10 | 600-800 |
large hammer mill -SFSP Series
Technical data of large hammer mill
| Model | SFSP80-Ⅰ | SFSP80-Ⅱ | SFSP80-Ⅲ | SFSP80-Ⅳ | SFSP80-Ⅴ |
| Rotor diameter (mm) | 800 | ||||
| Grinding chamber width (mm) | 400 | 600 | 800 | 1000 | 1200 |
| Spindle speed (rpm) | 2300 | ||||
| Hammer line speed (m / s) | 96 | ||||
| Power (kw) | 22/37 | 45/55 | 75/90 | 110/132 | 160/200 |
| Bearing Type | C2997*5 | ||||
| Belt Model | NSK 2317 | ||||
| Screen Size | 200*2 | 200*3 | 200*4 | 200*5 | 200*6 |
| Dimensions (mm) | 2150*1130*1800 | 2150*1330*1800 | 2150*1530*1800 | 2150*1730*1800 | 2150*1930*1800 |
Special Features of GEMCO Hammermill
- It can complete the particle grinding process and the particle separating process at the same time，all the powder will be retrieved.
- It contains an air flow control valve, easy to control the fineness of materials without shutting down the hammermill.
- It possesses a function of cooling, which controls the temperature of the grinding process, and keeps an uniformed size of the particles.
- It has a compact structure, small footprint, low energy consumption, high efficiency and low noise.
- It is simple to install, and convenient to replace the worn parts.Maintenance of Hammermill
Maintenance of Hammermill
- The bearing sustains the load of the machine, a good lubrication can help extending the service life of the bearing. And the lubricant must be clean and properly sealed.
- Check the newly installed tyre, it is easy to be loose.
- Be fully aware of the consumption of the wear part, and change it in time.
- Clean the powder and waste on the chassis where the movable bearing mounted, otherwise a fatal accident may happen when there are some unbreakable particles in the machine and the bearing on the chassis can’t move.
- If the bearing oil temperature is high, please shut down the machine and remove the peril.
- If there is a unusual noise when the rotary gear is operating, please shut down the machine and remove the peril.
